Waves Are Our Vision
The KY-LOC and KY-RAY sensor families introduce a new approach to the sensor market, combining robustness and attractive pricing with outstanding features and simple interfacing for quick integration in IoT environments.
Kymati Radar devices are based on the 61 GHz band with innovative MIMO antenna arrays, enabling redundant measurements and opening yet unknown fields of applications due to unprecedented technical and commercial features.
Radar, by nature, is ideally suited for applications under harsh weather conditions and in dusty areas, with no maintenance or adjustment after initial commissioning. The high resolution allows cost-effective, yet very precise sensor results.

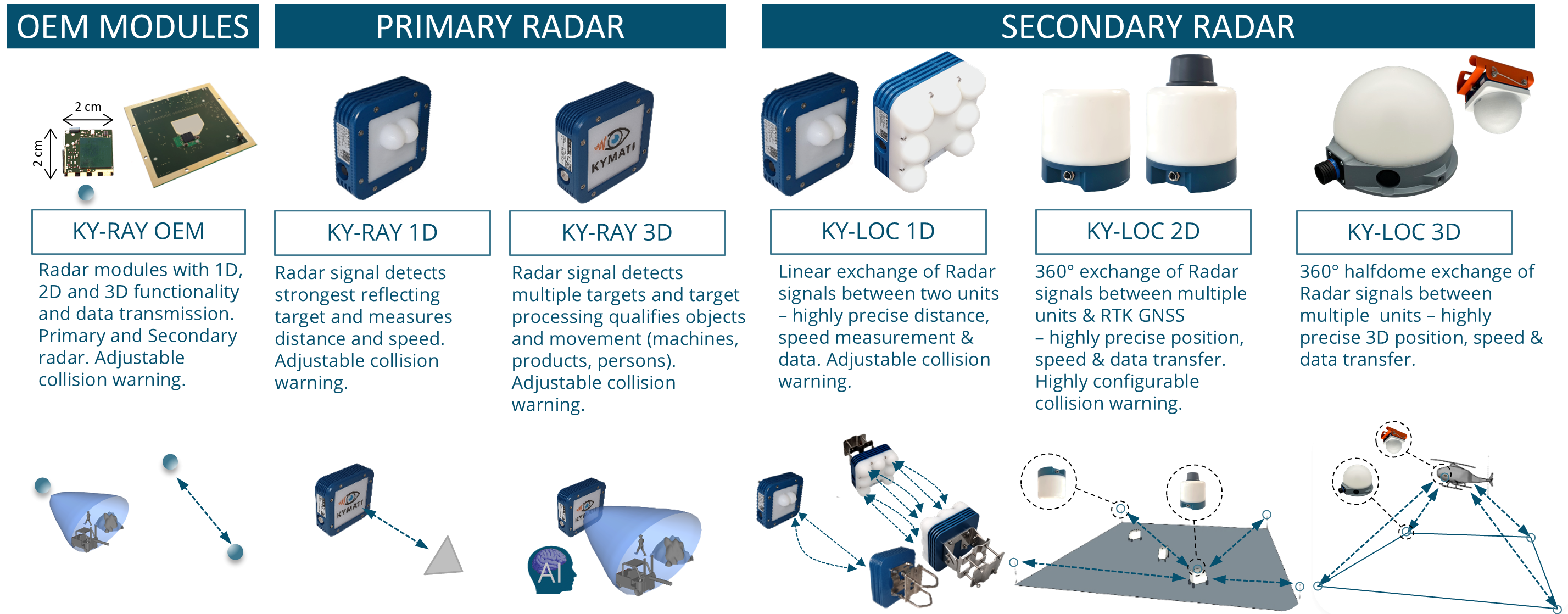

Differentiation between Primary and Secondary Radar

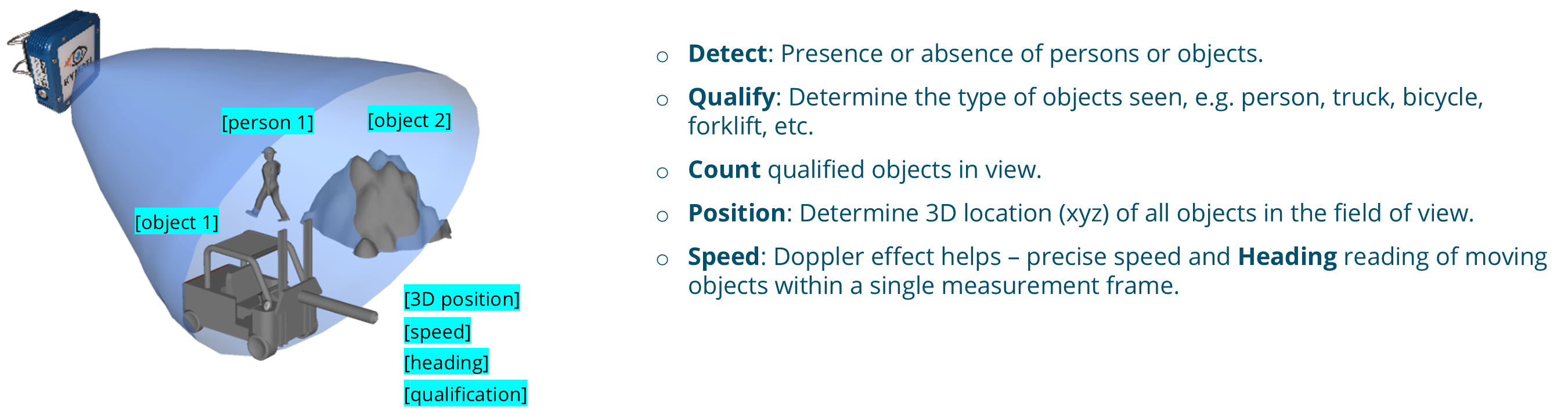

The KY-RAY sensors are all based on sending electromagnetic waves and receiving the reflections of these signals from passive objects within the field of view. This is the definition of Primary Radar.

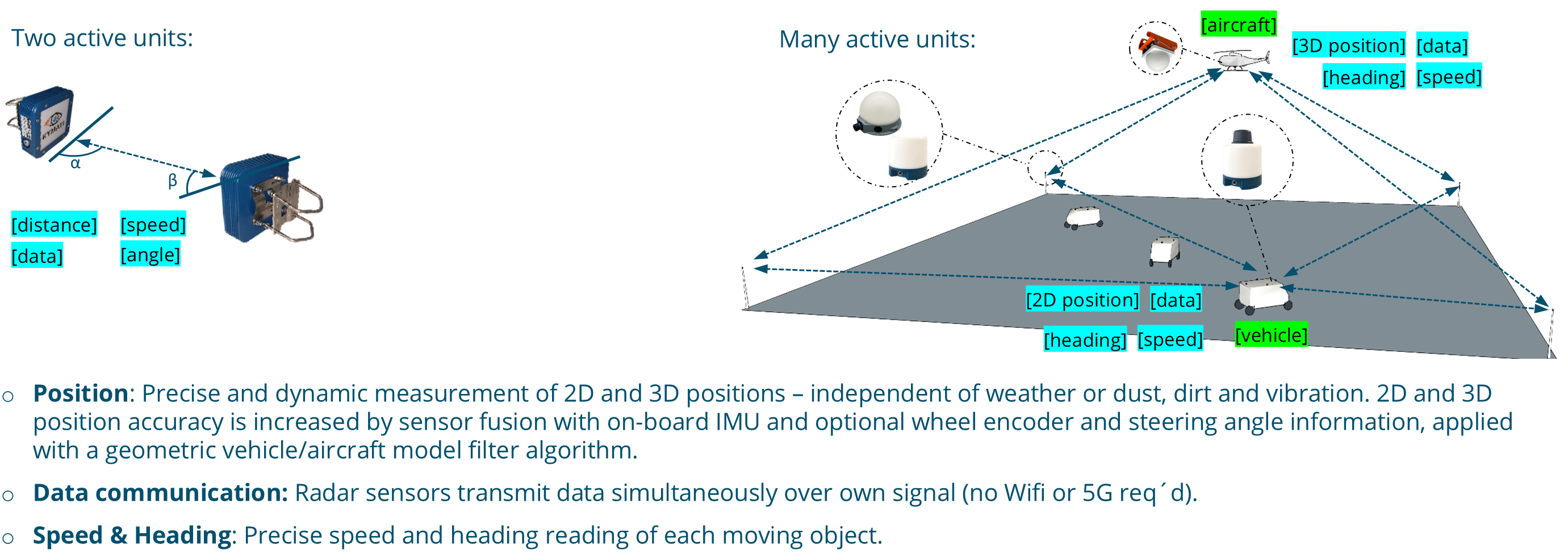

The units of the KY-LOC family deploy the exchange of active Radar signals between the units, in order to use the communication to derive distances and speeds. This active Radar signal exchange is called Secondary Radar.
Primary Radar
Products & Use case
KY-RAY 1D.01.01
Primary Radar to measure the distance to a passive object and optionally trigger multiple preset warning thresholds when approaching the object.
Principle
▢ VTOL
✅ Surveillance
✅ Traffic
Products & Use case
KY-RAY 3D.02.04
Primary Radar to detect typical road users in traffic, as well as in intralogistics on-site movements.
Principle
▢ VTOL
✅ Surveillance
✅ Traffic
Products & Use case
KY-RAY 3D.03.01
Primary Radar for generic detection of Radar targets position and speed, with parallel post processing of target data by an OEM software application.
Principle
▢ VTOL
✅ Surveillance
✅ Traffic
Products & Use case
KY-RAY 3D.04.01
Primary Radar to detect predefined objects. Several zones of interest can be preset. Signals are triggered when objects enter such zones.
Principle
▢ VTOL
✅ Surveillance
✅ Traffic
Products & Use case
KY-RAY Long Range
OEM Modul
Principle
✅ VTOL
✅ Surveillance
✅ Traffic
Products & Use case
KY-RAY Short Range
OEM Modul
Principle
✅ VTOL
✅ Surveillance
✅ Traffic
Secondary Radar
Products & Use case
KY-LOC 1D.01.01
Data sheet
Secondary Radar for 1D distance measurement, data transmission and trigger of distance warnings at preset thresholds. Such thresholds can automatically be adjusted depending on approach speed.
Principle
▢ VTOL
▢ Surveillance
▢ Traffic
Products & Use case
KY-LOC 1D.02.01
Data sheet

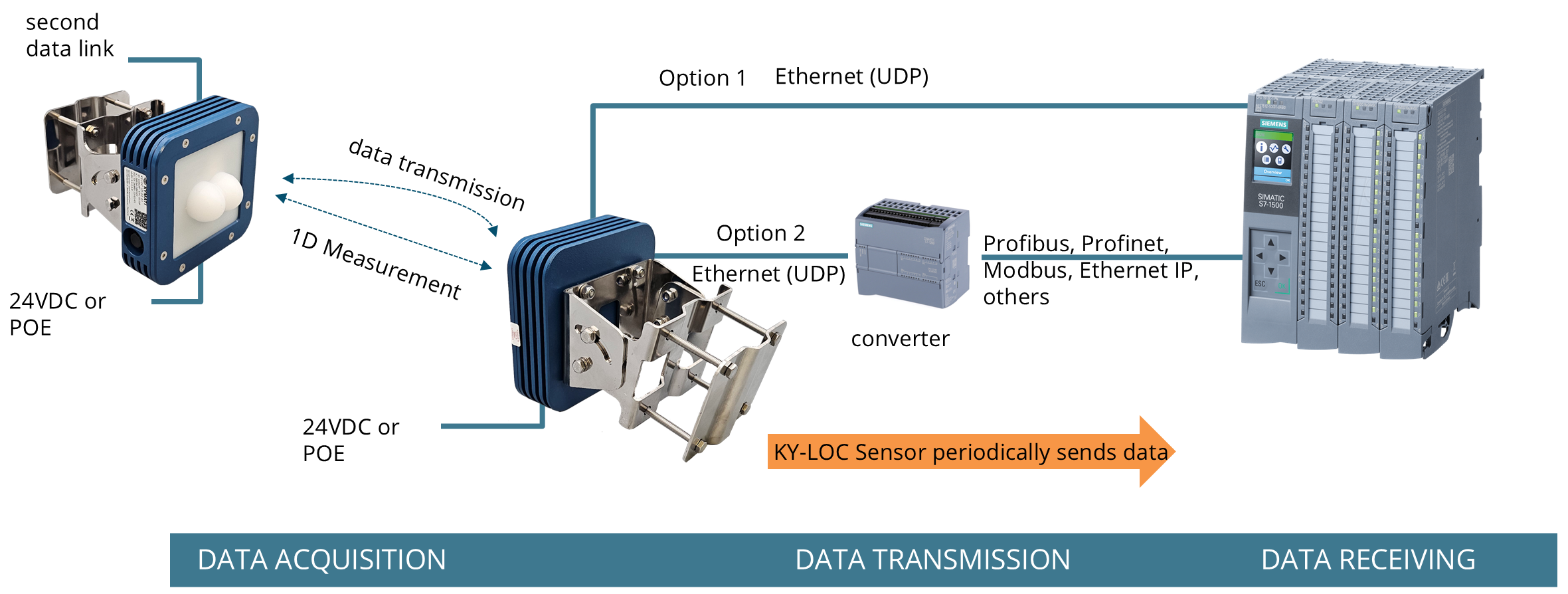

Secondary Radar for 1D distance measurement and data transmission from/to manually or automatically controlled machines with higher accuracy requirements. Several industrial interface connections to communicate with machine controls.
Principle
▢ VTOL
▢ Surveillance
▢ Traffic
Products & Use case
KY-LOC 1D.02.02
Data sheet
Secondary Radar for 1D distance measurement and data transmission from/to manually or automatically controlled machines with higher accuracy requirements. Several industrial interface connections to communicate with machine controls.
Principle
▢ VTOL
▢ Surveillance
▢ Traffic
Products & Use case
KY-LOC 1D.03.01
Data sheet

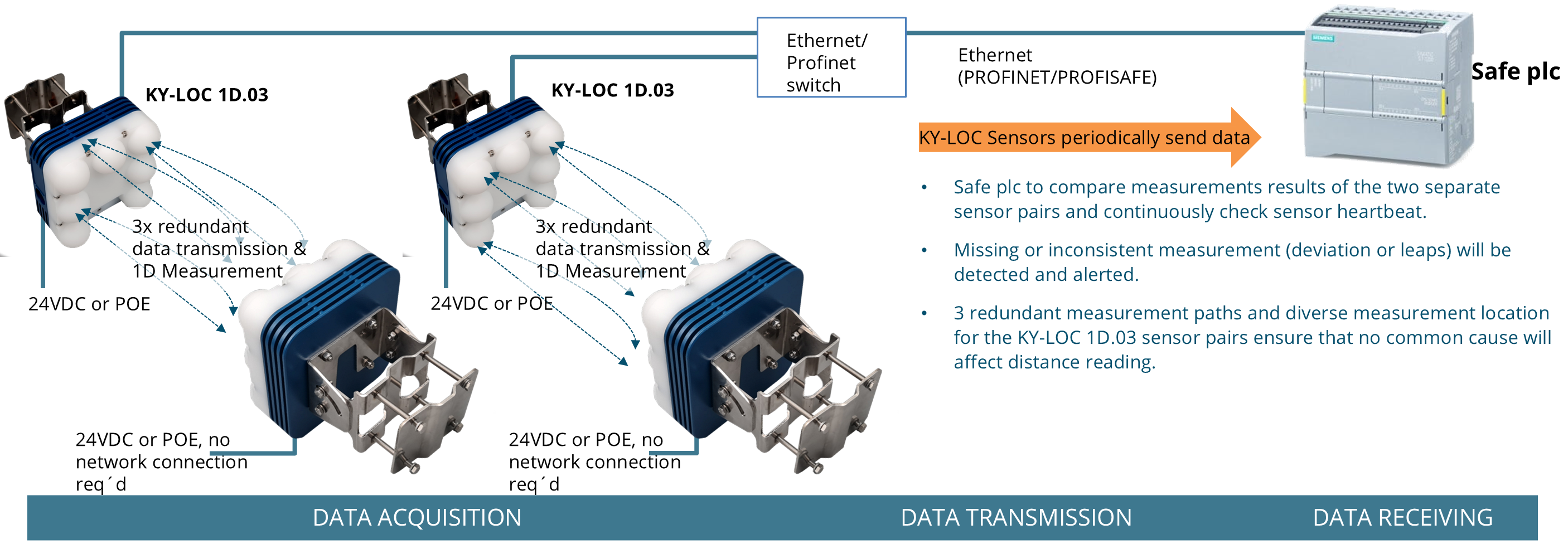

Secondary Radar for redundant and highly precise 1D distance measurement and data transmission from/to manually or automatically controlled machines with highest accuracy and range requirements. Several industrial interface connections to communicate with machine controls.
Principle
▢ VTOL
▢ Surveillance
▢ Traffic
Products & Use case
KY-LOC 2D.03.01
Secondary Radar for redundant and highly precise 2D position measurement and data transmission from/to manually or automatically controlled vehicles with highest accuracy and range requirements. Several industrial interface connections to communicate with machine controls.
Principle
▢ VTOL
▢ Surveillance
▢ Traffic
Products & Use case
KY-LOC 3D.01.01
Principle
✅ VTOL
▢ Surveillance
▢ Traffic
Software
Products & Use case
KY-SOFT V.01.01 - OMNI
Web-based visualization suite for 3D animation of moving objects, seen and replayed from any chosen viewport.
Principle
✅ VTOL
✅ Surveillance
✅ Traffic
